Micro Sprinklers

Micro sprinklers is the administration of small amounts of water generally as smaller discrete drops, continuous drips, or tiny streams through emitters installed along a water delivery line. The key to a successful irrigation system is consistency, and HSI has been offering products with a uniform distribution of flow. You may produce excellent overlap patterns in your nursery and greenhouse crops, resulting in great consistency. Mini Sprinklers are the finest in class for getting more done with less.

Micro Sprinklers

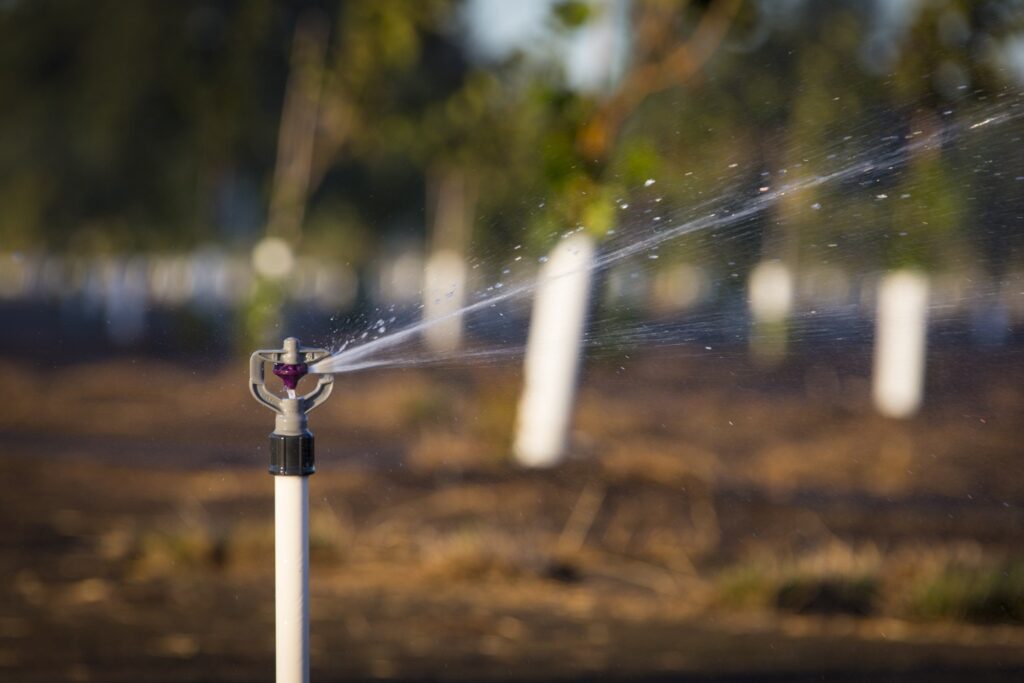

R10TG Rotator

The R10TG are a Rotatory Micro sprinklers specifically designed for irrigation in greenhouses and shade houses. The R10TG uses the same unique, patented drive principles and simplicity of design as our other Rotator models with a special two-stream configuration that works well for this application.

Specifications :

1.27 to 5 GPM, 311 to 1144 lph

Features & Benefits:

• Durable and Reliable
• High Uniformity
• Low and High-flow Capacity
• Easy-clean, Quick-change Nozzles

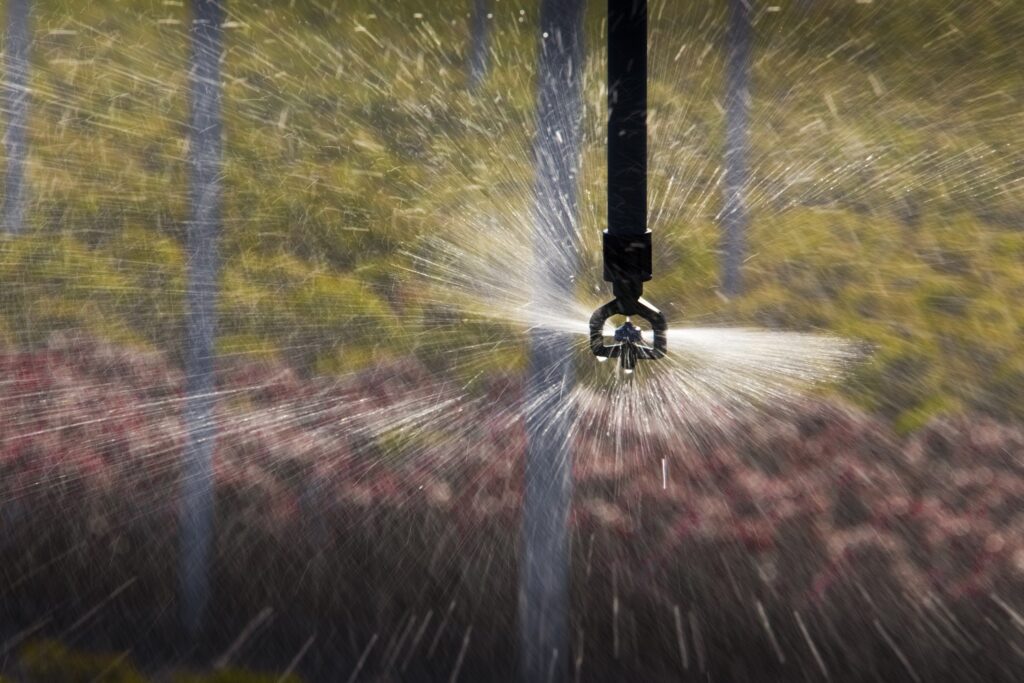

Spinner S10

The S10 Spinner for mining, nursery, and greenhouse applications is a unique little sprinkler that evenly distributes a wide range of flow like a gentle rain. With its high-flow capacity, high uniformity, and greater radius you will need far fewer S10 Spinners than traditionally needed in similar applications. Space the S10 from 16 x 16 to 26 x 26 feet (5 x 5 to 8 x 8 meters) depending on your conditions. Closer spacings will normally deliver the best uniformity … especially in the wind. Three plate options are available for high trajectory, low trajectory, or flat trajectory performance.

Specifications :

8 to 5 GPM, 182 to 1136 lph

Features & Benefits:

• Tough, durable, and reliable build.
• High uniformity.
• Easy-clean, color-coded nozzles.
• PVC or threaded adapter options.
• Mini Regulator Drain Check option.
• FT4 or FT5 feed tube options for easy connection to polyethylene pipe

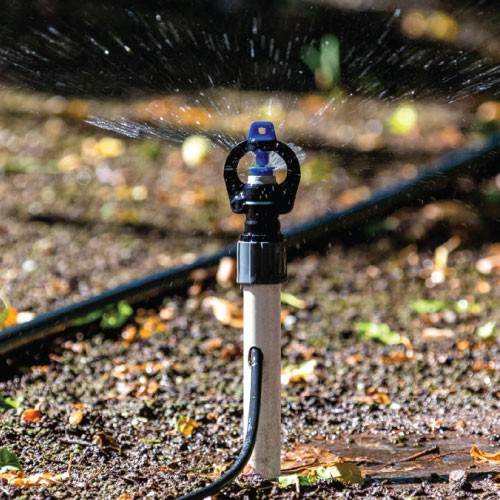

Spinner S7

Introducing the S7 Spinner – a new Nelson innovation designed to combat rising energy and labor costs. The S7’s Modular design allows quick and easy nozzle exchange – and the Quick Clean (QC) technology reduces irrigator hours — simply turn, flush and reconnect. Special insect protection helps prevent plugging or stalling.

Specifications :

8.5 to 75 GPM, 32 to 285 lph
15-50 PSI, 1.0-3.4 bar
9-16’ radius., 2.7-4.9 m radius

Features & Benefits:

• Unique quick-connect, quick-clean features
• Flow control options – nozzles are flow-regulating at 15 PSI (1 bar)
• Optional tree starter (break off) deflector tabs offer flexibility.
• Optional PVC Stakes prevent tubing damage from coyotes and other animals

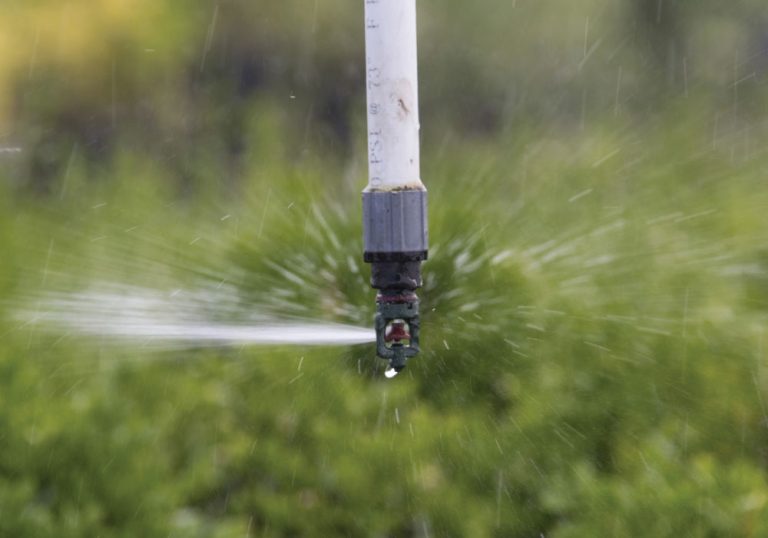

Spinner S5

Now there is a reliable option for a spinning sprinkler that hangs in an inverted position. Use the S5 Spinner for irrigation in organic and conventional production where all pipe and sprinklers are attached to the trellis wire and are thus up and out of the way of cultivation equipment. The S5 Spinner is meant to hang upside down. The barbed tubing inserts directly into HDPE pipe. Use a length of PVC pipe to keep the sprinkler hanging straight. Applications include: tree fruit, vineyards, greenhouse and kiwi.

Specifications :

9.5 to 24 GPM, 3.8 to 90.8 lph

Features & Benefits:

• Sealed bearing prevents stalling – even in conditions of blowing sand and dust.
• Flow control nozzle options.
• Can be applied to concentrate water application more heavily in the tree row with less being applied to the drive alley center.
